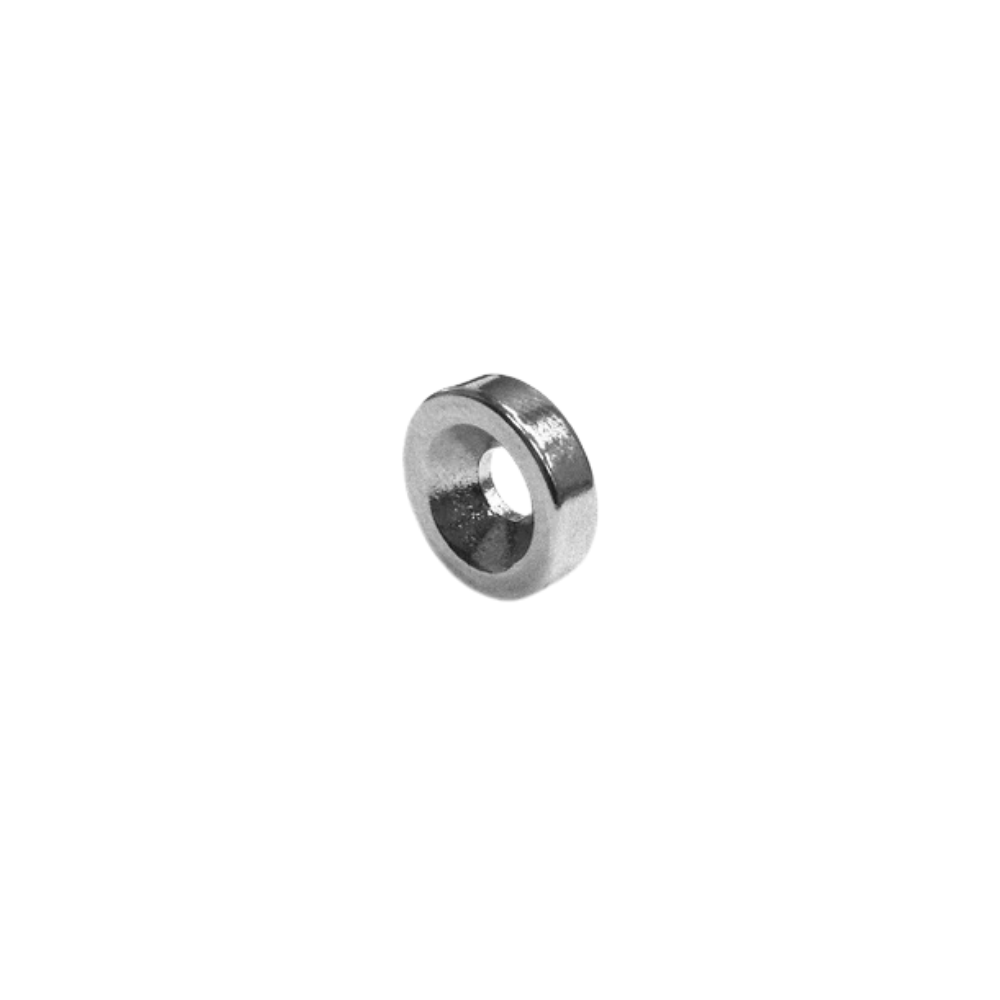

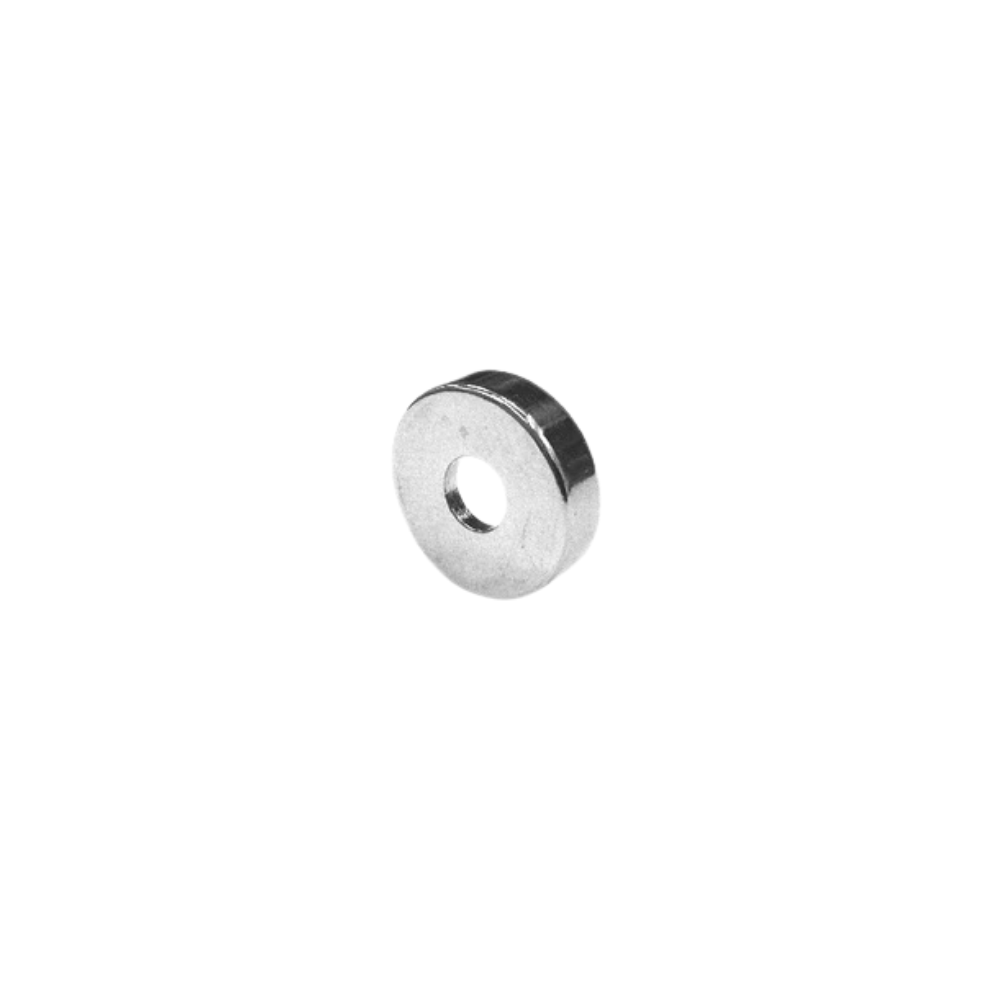

Description
Dimensions:
The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm
Diameter: 12.5mm (D)
Height: 3.5mm (H)
Countersunk Hole: XXmm (D1)
Through Hole: 4.2mm (D2)

Pull Strength: 2.5kg
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.
Direction of Magnetism: "Axially"
Magnetised (top to bottom) thru 3.5mm thickness. The axis through which a product is magnetised.
Grade: N42
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.
Features:
- Powerful Rare Earth (Neodymium) permanent magnet.
- High gloss Nickel coating, for protection against corrosion.
- Maximum operating temperature 80°C / 100°C
- Specifically sized with countersunk hole for secure mounting.
Order Units: Sold Individually
Bulk discounts available on orders of 1,000pcs or more
