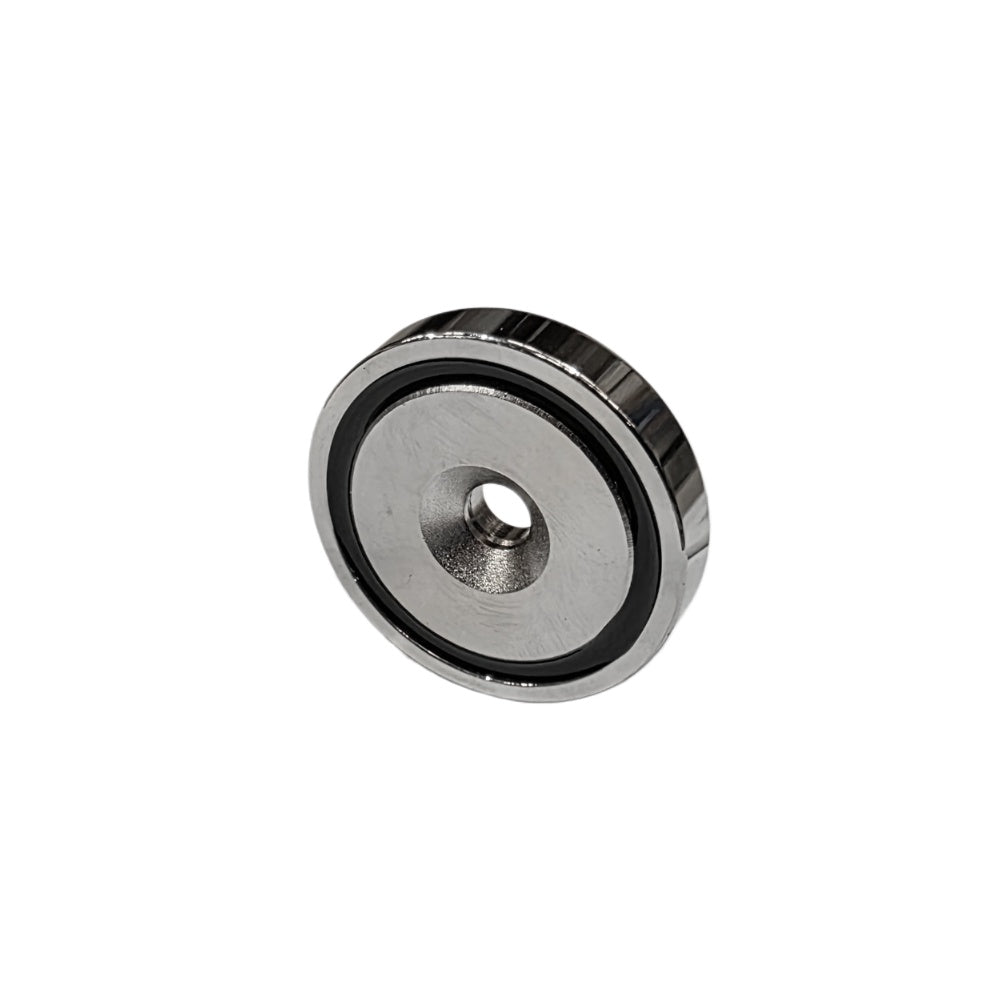

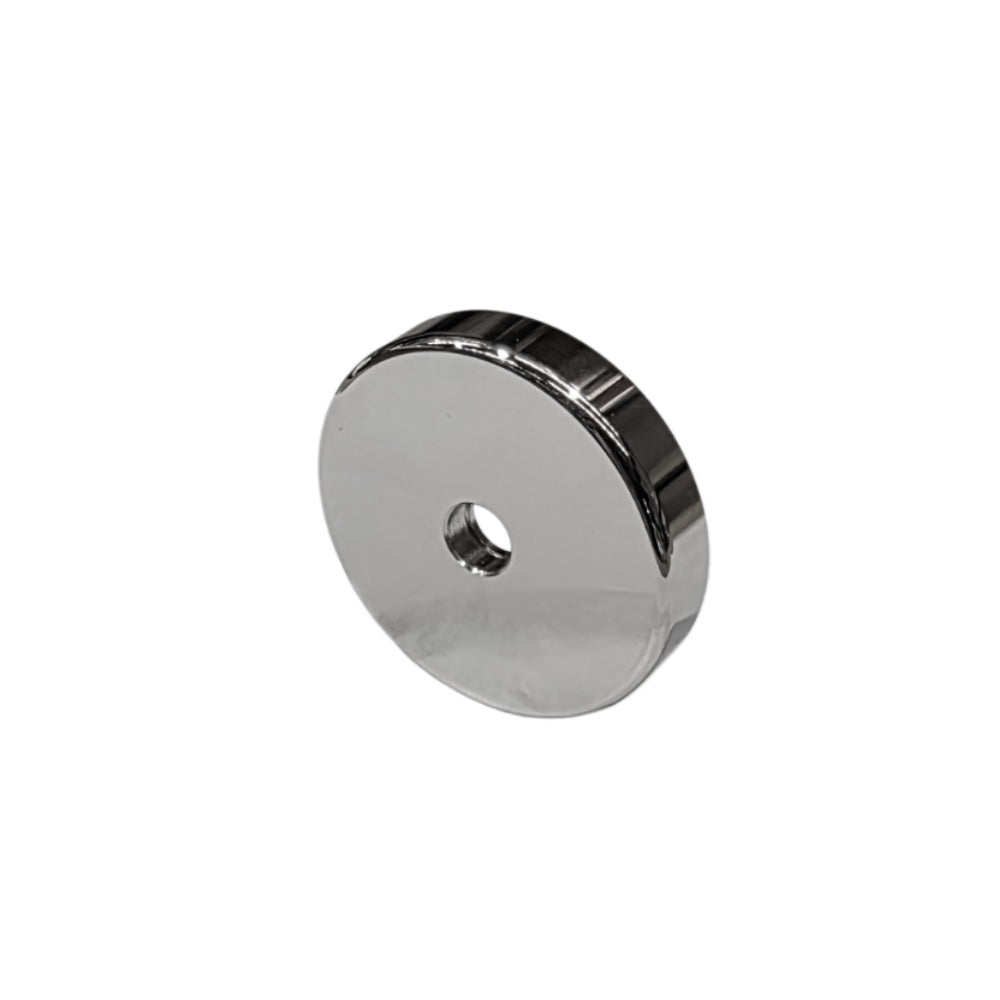

48mm x 9.35mm Low Profile Pot with 8.5mm Countersunk Hole (Rare Earth)

Dimensions: Ø 48mm (Diameter)  x  9.35mm (Thickness),  Ø 8.5mm (Countersunk hole diameter)
The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm.

Pull Strength: 56kg
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.

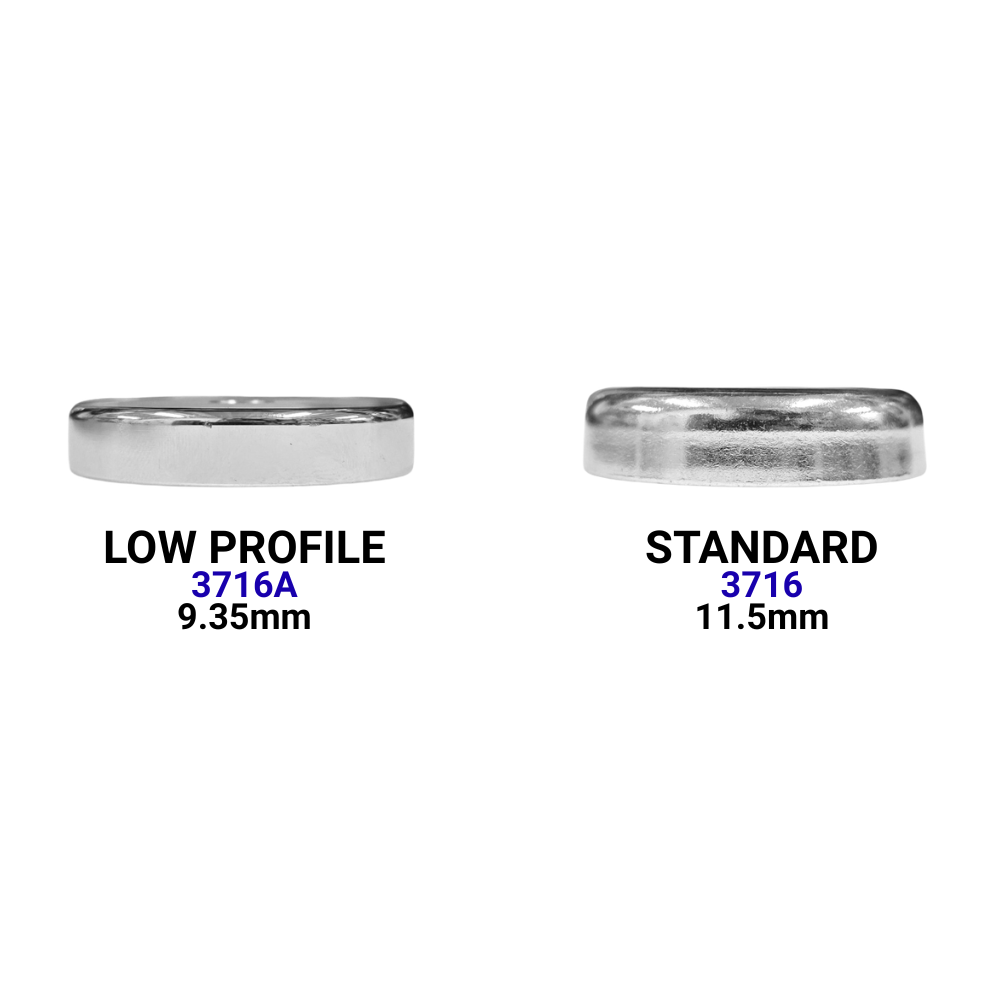

Low Profile Design:
Slim 9.35mm profile makes this magnet ideal for applications where space is limited or a more discreet mounting solution is required, with minimal loss to holding performance.

Direction of Magnetism: "Axially"
Magnetised (top to bottom) thru 9.35mm thickness.
The axis through which a product is magnetised. Products may be magnetised axially, diametrically or otherwise (e.g. multipole). See more about directions of magnetism at our Help Centre.

Grade: N35
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.

Features:

• Low profile steel pot design for a slimmer overall height
• Magnet is encapsulated on all but one side with a protective steel holding pot
• Incorporates a countersunk hole for use with flathead screws
• Powerful Rare Earth (Neodymium) permanent magnet
• High gloss Nickel coating, for protection against corrosion
• Maximum operating temperature 80°C / 100°C

Order Units:
Available in individual units

Outdoor Use Notice:
Ni-Cu-Ni (Nickel Copper Nickel) coating provides basic corrosion resistance only. In outdoor or high-moisture environments, surface corrosion will occur over time. For outdoor use, we recommend applying a protective paint layer or consider our painted, rubber-coated, or plastic-coated magnet options.
