Material
Grade
Max Temp (°C)
Corrosion resist.
Description

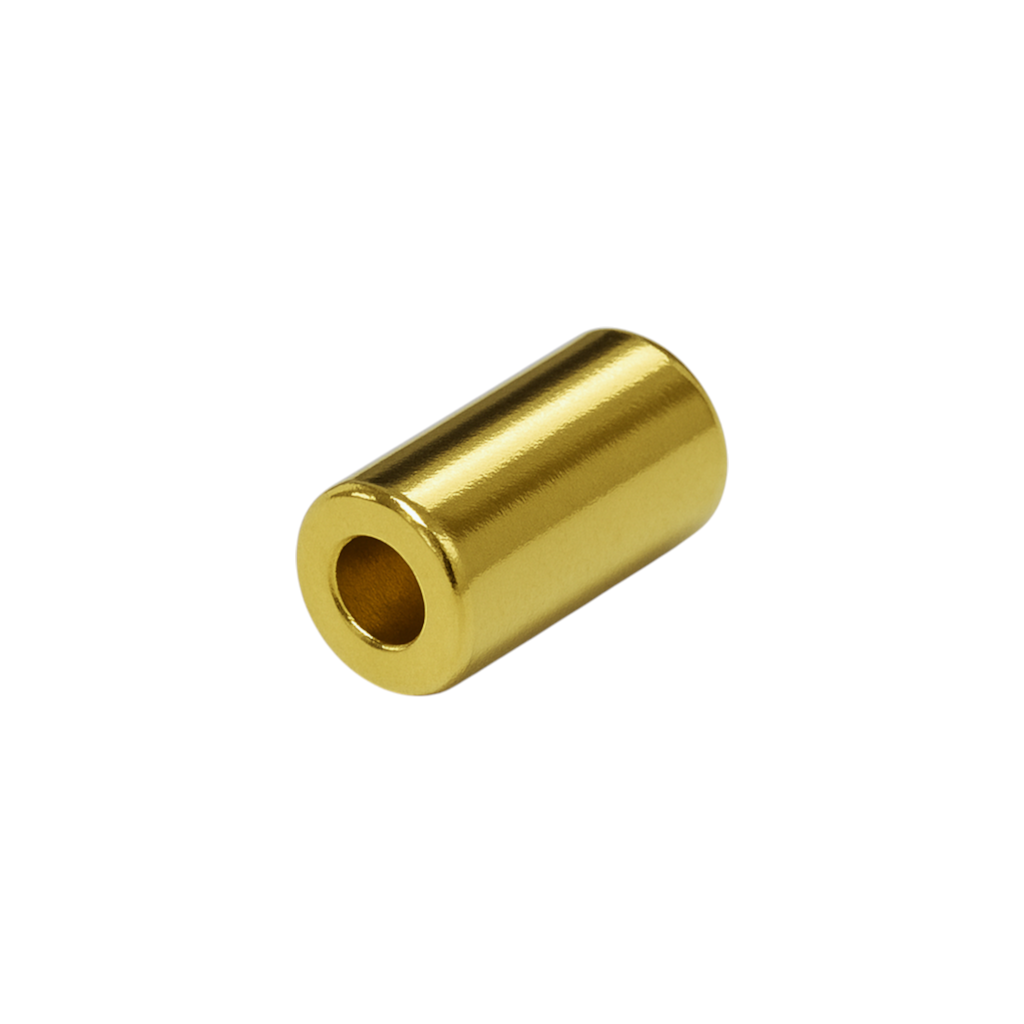

This Tube Bead (Cylinder) Magnet feature a central hole for easy threading onto wire, string, fishing line, or small rods. Their compact neodymium design delivers strong, reliable performance in industrial assemblies, magnetic couplings, alignment tasks, prototyping, research, and controlled medical environments.
Dimensions: Ø 5mm (D) x 8mm (L) / 2mm ID Hole
The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm
Pull Strength: 843g
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.
Direction of Magnetism: "Axially"
Magnetised end to end. The axis through which a product is magnetised.
Grade: N42
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.
Features:
- Powerful Rare Earth (Neodymium) permanent magnet.
- High gloss Gold coating, for protection against corrosion.
- Maximum operating temperature 80°C / 100°C
Order Units: Single
Bulk discounts available on orders of 1,000pcs or more.
