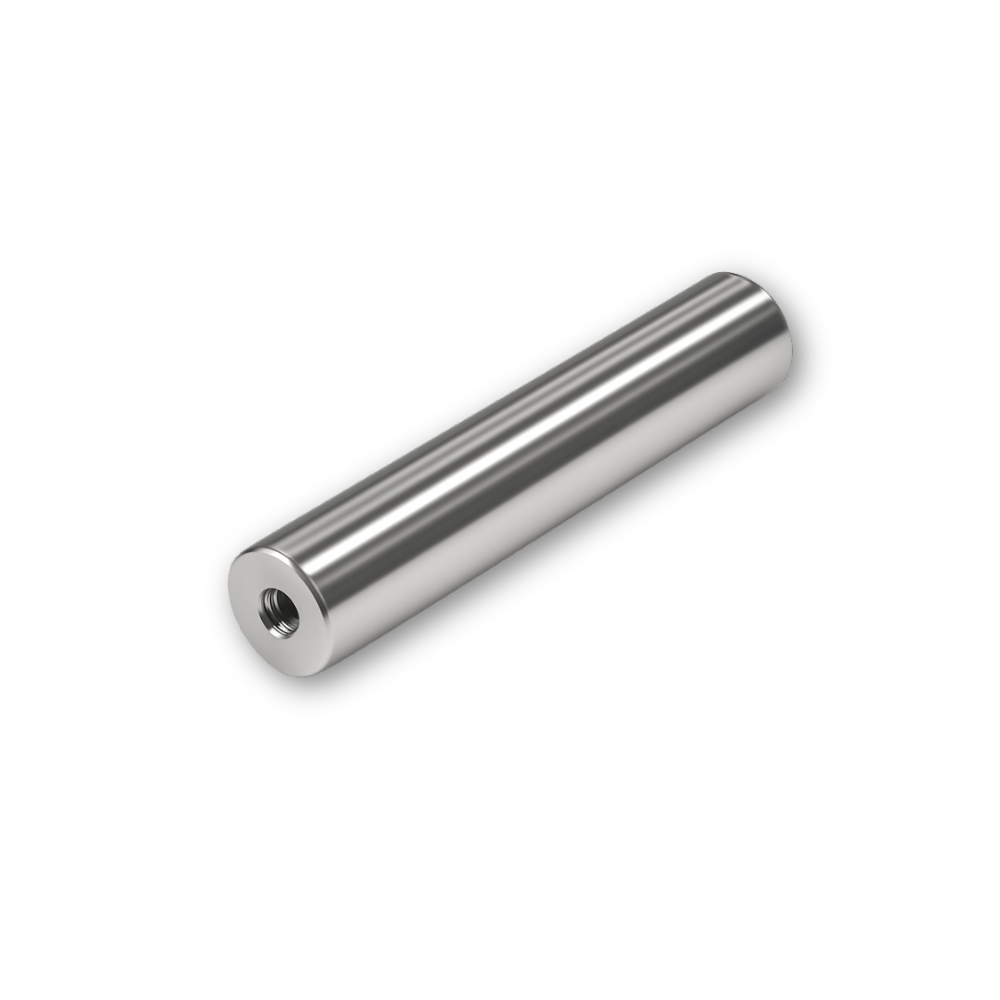

Dimensions: Ø 25mm(Diameter) x 150 mm (Length), M8 tapped (15mm deep) ends.
The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm
Direction of Magnetism: "Diametrically" magnetised (magnetism extrudes from all sides of the tube).The axis through which a product is magnetised. Products may be magnetised axially, diametrically or otherwise (e.g. multipole).
Gauss:11,000 Gauss approx (High Intensity) A measurement of surface "magnetic induction" (B), equal to one ten-thousandth of a Tesla. Gauss indicates the number of lines of magnetic flux per square centimetre, under the CGS metric system.
Features:- Tube extracts ferrous contaminants from liquids / powders /etc. Suitable for use on production lines, hoppers, tanks, pipes and conveyors.- M8 tapped ends, for mechanical attaching.- Fully welded Grade 304 stainless steel construction.
Contains high-powered Rare Earth (Neodymium) permanent magnets.- Maximum operating temperature 80°C / 100°C
Order Units: Available in individual units. Bulk discounts available on orders of 10pcs or more.
