Material
Alnico Ferrite SmCo Neodymium
Ultra-high strength magnet material with the best strength-to-size ratio. Brittle and usually plated/coated for protection.
Grade
Weakest Strongest
N30N33N35N38 N40N42N45N48 N50N52
Max Temp (°C)
50°C80°C120°C150°C180°C
Corrosion resist.
Low Low/Med Med Med/High High

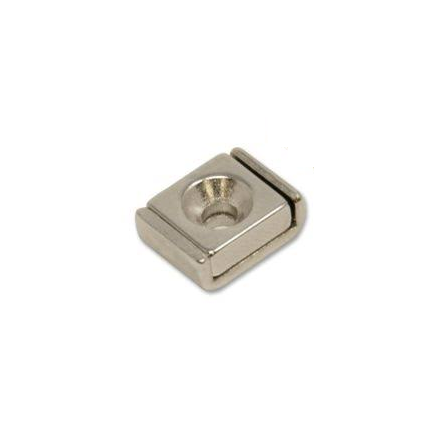

10mm x 13.5mm x 5mm Rectangular Pot with 3mm Countersunk Hole (Rare Earth)

Pull Strength: 4 kg

Grade: N35

Coating: Nickel

Item: 3680

Total price:
Regular price $4.80 Regular price
Checking for bulk pricing...

Description

L (mm)

W (mm)

H (mm)

M (mm)

Weight (g)

10

13.5

5

3

4


Pull Strength: 4kg
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.

Direction of Magnetism: "Axially"
Magnetised (top to bottom) thru 5mm thickness. The axis through which a product is magnetised.

Grade: N35
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.

Features:
- This Rectangular (Channel) Magnet is encapsulated on all but one side with a protective steel holding pot.
- Incorporates a countersunk hole for use with flathead screws.
- Powerful Rare Earth (Neodymium) permanent magnet.
- High gloss Nickel coating, for protection against corrosion.
- Maximum operating temperature 80°C / 100°C

Order Units: Single
(Bulk discounts available on orders of 1,000pcs or more)
