Material
Grade
Max Temp (°C)
Corrosion resist.
Description

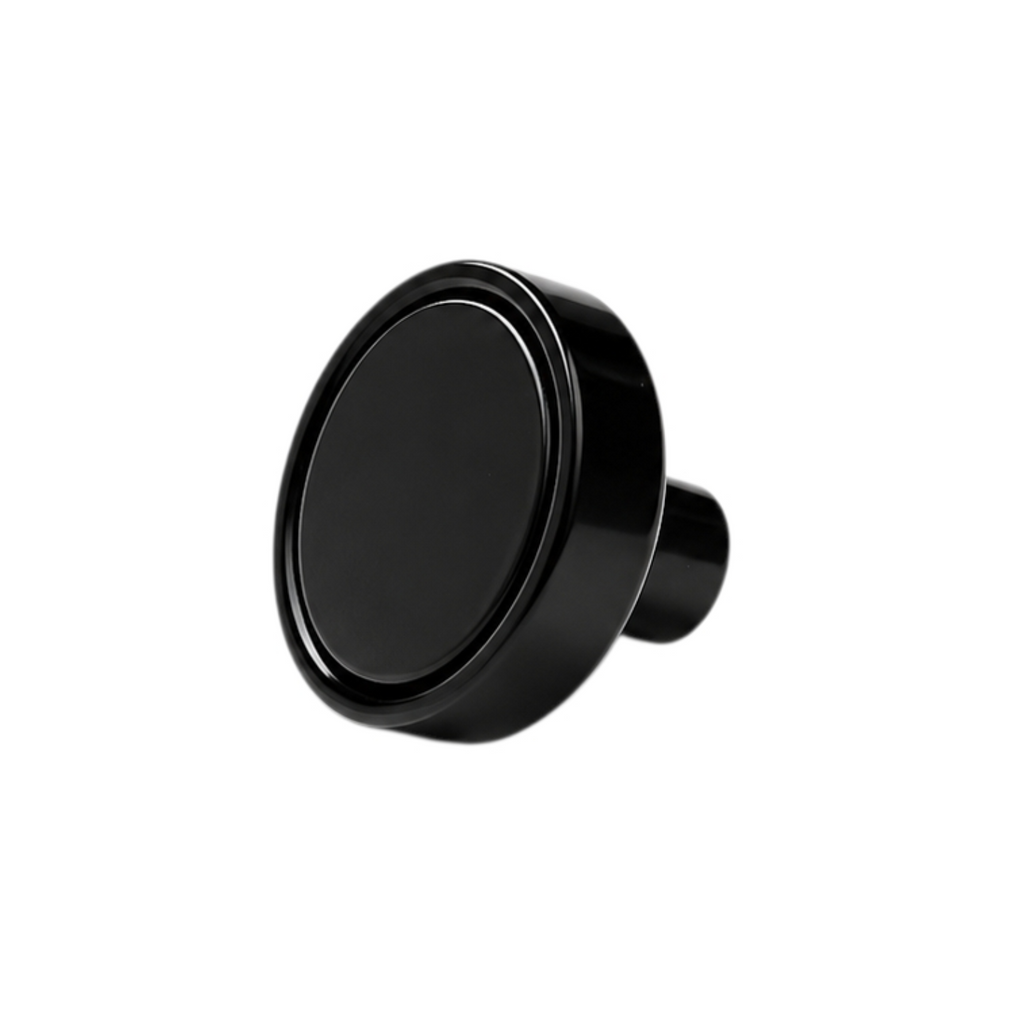

These N45 grade black epoxy coated internal thread pot magnets combine high holding force with excellent corrosion resistance. The steel cup pot magnet design concentrates the magnetic field for maximum performance, while the internal threaded mounting hole provides a secure and versatile fixing method.
Dimensions: Ø16mm (Diameter) x 5mm (Thickness) 8mm high external post (with M4 internal thread). The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm
Pull Strength: 8kg
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.
Direction of Magnetism: "Axially"
Magnetised (top to bottom) thru thickness. The axis through which a product is magnetised. Products may be magnetised axially, diametrically or otherwise (e.g. multipole). See more about directions of magnetism at our Help Centre.
Grade: N45
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.
Features:
- Magnet is encapsulated on all but one side with a protective steel holding pot.

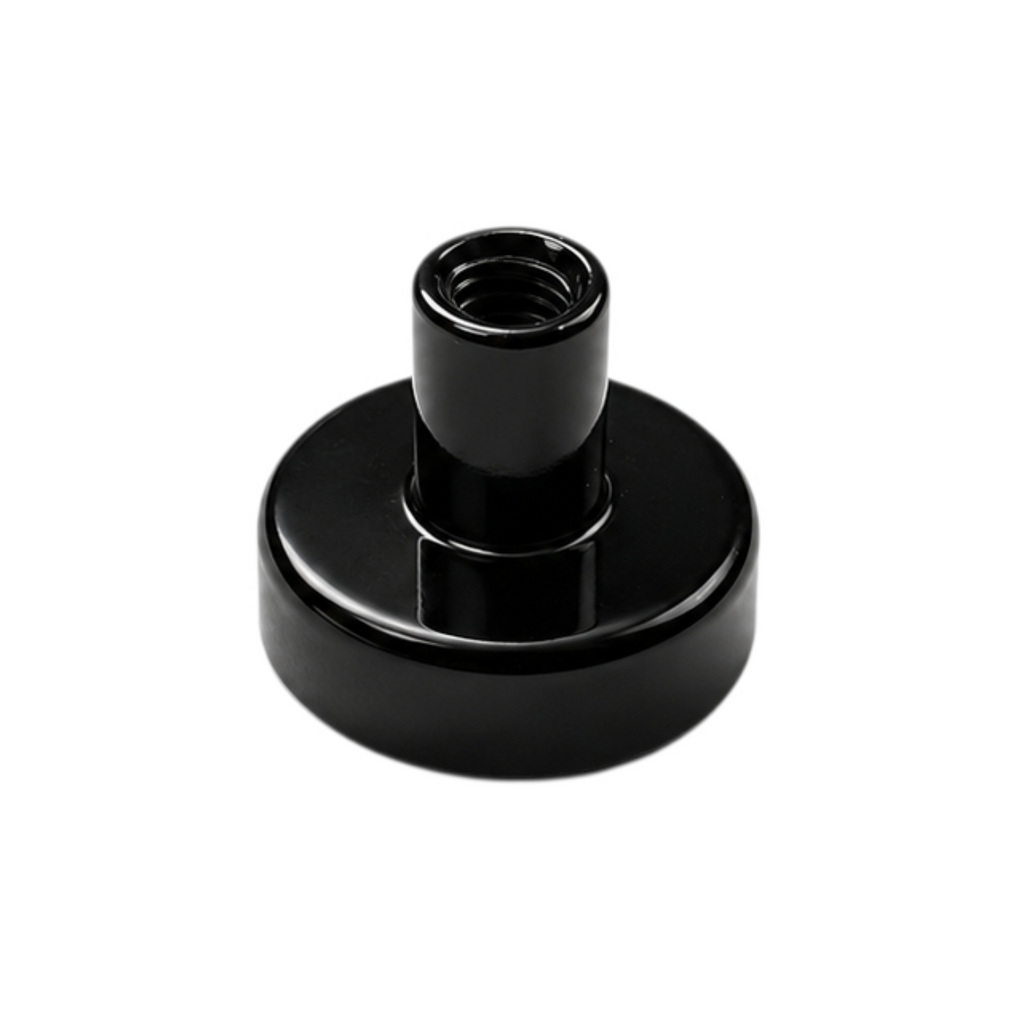

- Incorporates an external post with M4 internal thread.
- Powerful Rare Earth (Neodymium) permanent magnet.
- Black Epoxy Coated for ultimate protection against rust & corrosion.
- Maximum operating temperature 80°C / 100°C
Order Units: Single
Bulk discounts available on orders of 1,000pcs or more.
