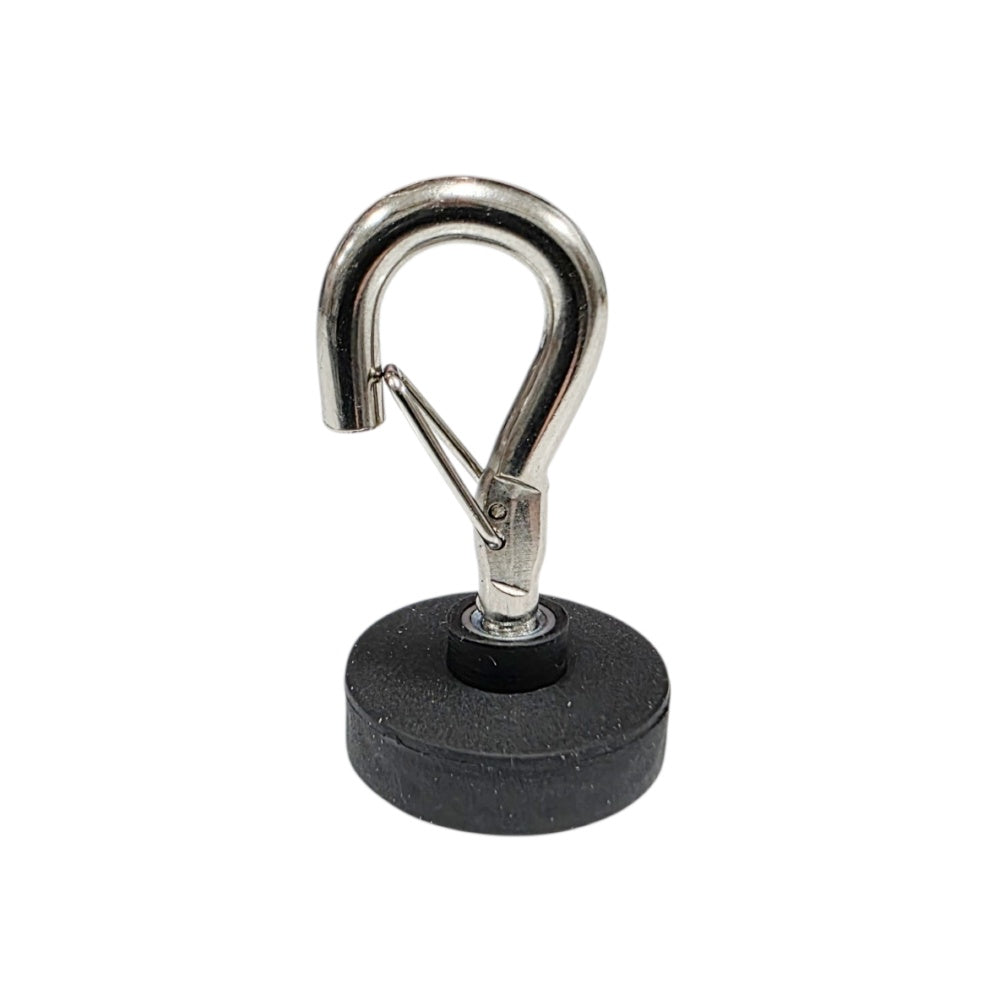

22mm Rubber Coated Neodymium Pot Magnet with Spring Locking Hook – 5kg Pull Strength

22mm Rubber Coated Neodymium Pot Magnet with Spring Locking Hook

This 22mm rubber coated neodymium pot magnet with spring locking hook provides a secure, removable hanging point while helping to protect painted and delicate steel surfaces from scratches. The spring-loaded gate helps prevent cables, cords, rings and other attached items from accidentally slipping out of the hook.

The durable rubber coating also increases friction against smooth steel surfaces, providing improved grip and helping to reduce sliding when mounted vertically. With an approximate 5kg direct pull strength, this magnetic locking hook is ideal for workshops, warehouses, retail displays, caravans, garages and around the home without requiring drilling or permanent installation.

Specifications

• Product Type: Rubber Coated Neodymium Pot Magnet with Spring Locking Hook
• Magnet Diameter: 22mm
• Overall Height: 38mm
• Spring Hook Opening: 7mm
• Pull Strength: Approx. 5kg
• Recommended Steel Thickness: Minimum 3mm

Benefits of the Rubber Coating

The protective rubber coating helps prevent scratching on painted, polished and coated steel surfaces while also increasing friction between the magnet and the mounting surface.

This additional grip helps reduce slipping when mounted on vertical steel surfaces, making rubber coated magnetic hooks an excellent choice where improved resistance to sliding is required.

Spring-Loaded Locking Hook

Unlike a standard open magnetic hook, the integrated spring gate helps keep the attached item securely inside the hook. The gate opens easily when pressed and automatically returns to the closed position when released.

This makes the hook particularly useful for holding cords, cables, small chains, key rings, signs and hanging accessories that may otherwise slip from an open hook if bumped or moved.

Common Applications

• Workshop and garage organisation
• Hanging cables, cords and extension leads
• Warehouse storage and equipment organisation
• Retail displays and temporary signage
• Caravan and camping accessories
• Office and warehouse whiteboards
• Hanging keys and lightweight tools
• Protecting painted or powder-coated steel surfaces
• Temporary hanging points on machinery and steel shelving

How Pull Strength Is Measured

The stated 5kg pull strength is measured when the magnet is in direct contact with clean, flat mild steel that is at least 3mm thick, with the force applied directly away from the steel surface.

While the rubber coating slightly reduces maximum direct pull compared to an equivalent bare pot magnet, it provides significantly greater grip on vertical steel surfaces by increasing friction and reducing sliding.

Actual holding performance may be affected by thin steel, paint thickness, rust, curved surfaces, gaps, vibration and the direction of the applied load.

Important Safety Information

Always test the magnetic hook in its intended application before use. Do not position it above people or use it to support fragile, valuable or safety-critical items. Ensure the magnet is attached to a clean, suitable ferromagnetic steel surface before applying a load.

Frequently Asked Questions

What is a spring locking hook?

A spring locking hook has a spring-loaded gate across the hook opening. The gate helps prevent an attached cord, ring or accessory from accidentally slipping out of the hook.

Why choose a rubber coated magnetic hook?

The rubber coating helps protect painted and polished surfaces from scratches while increasing friction, providing improved grip and helping to reduce sliding on vertical steel surfaces.

What size is the hook opening?

The spring hook has an opening gap of approximately 7mm.

Will this magnetic hook attach to stainless steel?

It will only attach securely to magnetic grades of stainless steel. Many commonly used stainless steels are weakly magnetic or non-magnetic.

Is the 5kg rating suitable for vertical hanging?

The 5kg rating is a direct pull measurement taken perpendicular to the steel surface. Actual vertical holding capacity depends on the mounting surface and load, however the rubber coating provides improved resistance to sliding compared with a standard bare pot magnet.

Available Sizes

This Rubber Coated Neodymium Pot Magnet with Spring Locking Hook is available in a range of sizes to suit different holding requirements.

• 22mm Rubber Coated Neodymium Pot Magnet with Spring Locking Hook
• 43mm Rubber Coated Neodymium Pot Magnet with Spring Locking Hook
• 66mm Rubber Coated Neodymium Pot Magnet with Spring Locking Hook
• 88mm Rubber Coated Neodymium Pot Magnet with Spring Locking Hook

Larger diameter rubber coated magnets generally provide greater holding force and increased surface contact, making them suitable for heavier hanging applications while continuing to protect steel surfaces from damage.
