Description

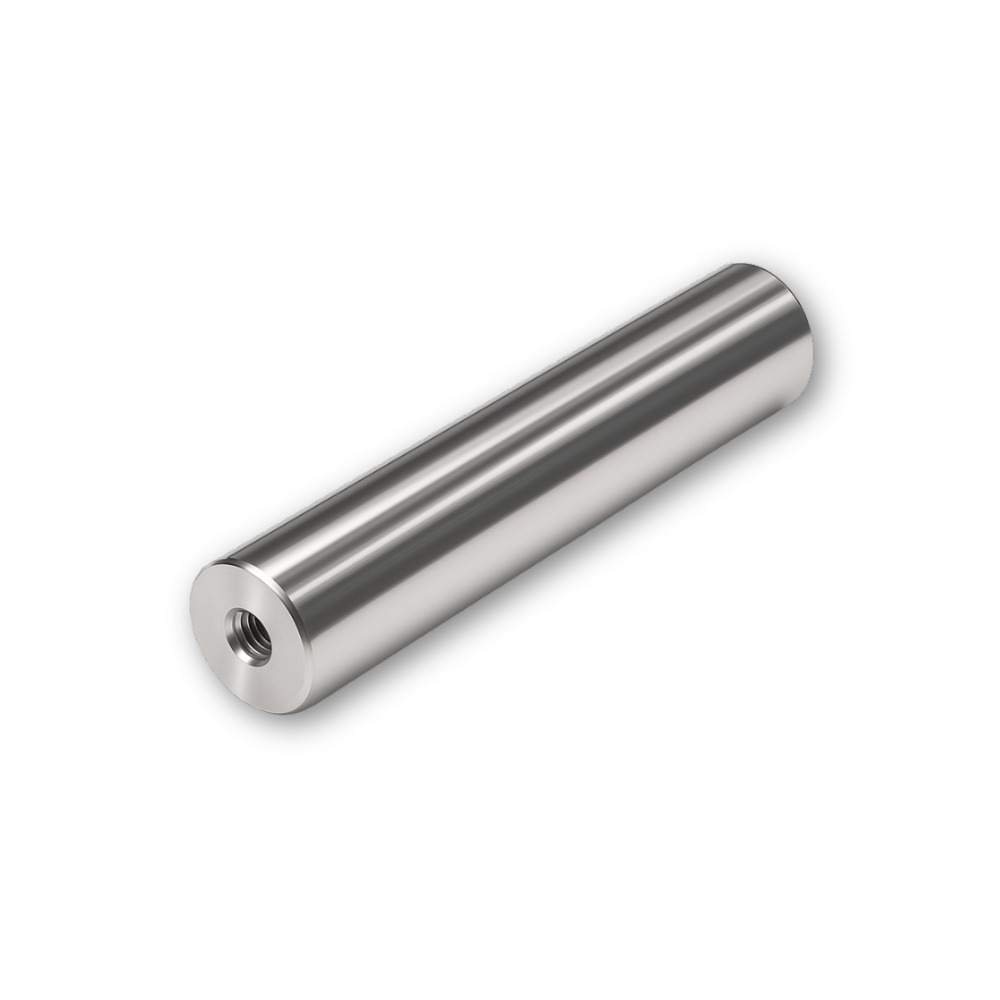

Magnetic Separation Tube – 25mm x 100mm – 10,000+ Gauss
Capture unwanted iron and steel particles from dry powders, granules and other bulk materials with this high-intensity magnetic separation tube. Powerful neodymium rare earth magnets provide a 10,000+ Gauss surface magnetic field to help remove ferrous contaminants during industrial processing and protect downstream equipment.
Measuring 25mm in diameter x 100mm long, this magnetic separator rod features a fully welded Grade 304 stainless steel housing and M8 tapped ends for secure mechanical mounting.
For industrial applications only. Not suitable for food or dairy processing.
Key Features
- High-intensity separation: 10,000+ Gauss surface magnetic field for capturing ferrous metal contaminants.
- Permanent neodymium magnets: Powerful rare earth magnets operate without an electrical power supply.

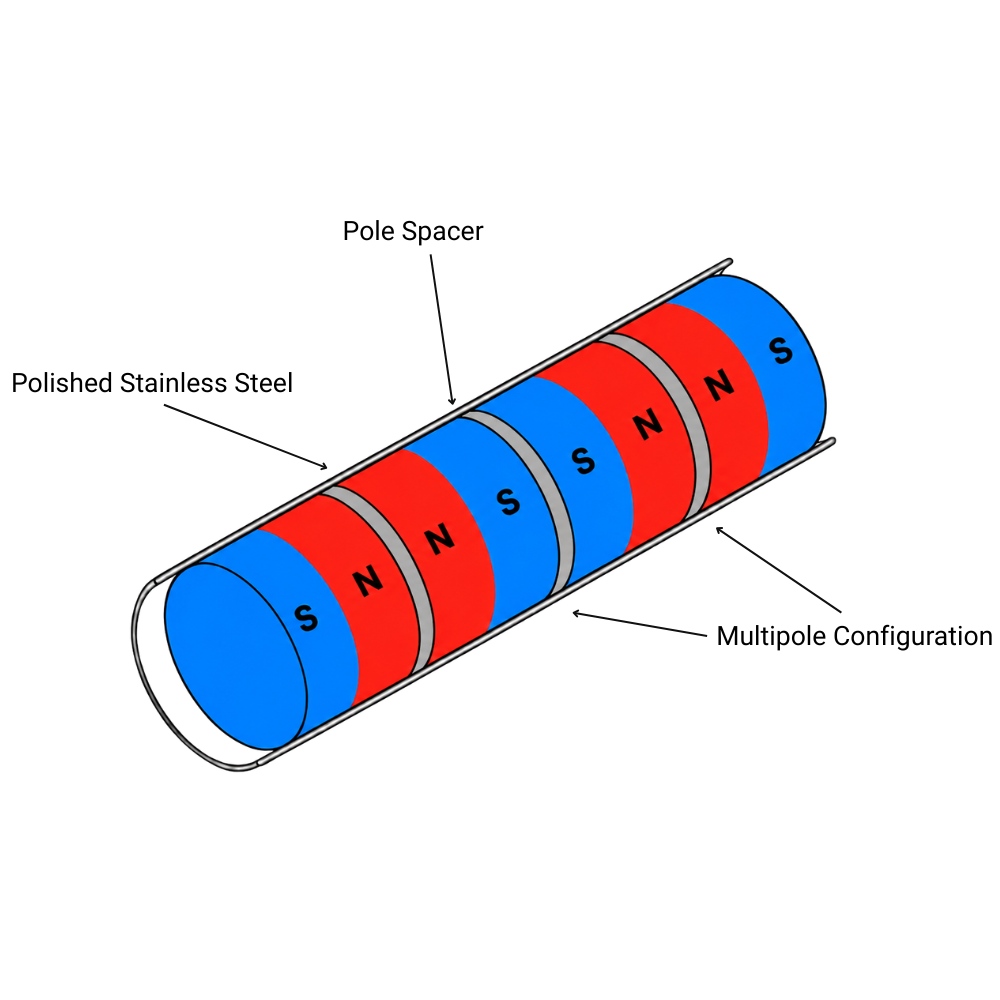

- Magnetic collection zones: The internal magnetic assembly attracts ferrous particles around the tube’s outer surface.
- Stainless steel housing: Fully welded Grade 304 stainless steel construction encloses and protects the internal magnets.
- Secure installation: M8 tapped holes at both ends, each 15mm deep, allow mechanical attachment.
- Flexible integration: Install individually or incorporate into a larger industrial magnetic separator assembly.
Technical Specifications
| Diameter | 25mm |
|---|---|
| Length | 100mm |
| Mounting | M8 tapped ends, 15mm deep at each end |
| Dimensional Tolerance | Approximately ±0.05mm |
| Surface Magnetic Field | 10,000+ Gauss (high intensity) |
| Magnet Material | Rare earth neodymium permanent magnets |
| Housing Material | Fully welded Grade 304 stainless steel |
| Maximum Operating Temperature | 80°C |
Industrial Applications
Suitable for ferrous contaminant removal in industrial powder, granule and bulk material handling systems. Integrate the magnetic separation tube into hoppers, chutes, production lines and conveyor transfer points where processed material passes close to the tube’s surface.
Ordering & Bulk Discounts
Sold individually. Bulk discounts are available
