Material
Max Temp (°C)
Corrosion resist.
Description
SmCo (Samarium Cobalt) magnets feature high energy density and excellent stability in high temperatures, these versatile magnets are perfect for motors, generators and medical equipment. Their resistance to corrosion means long-lasting performance for all your applications.

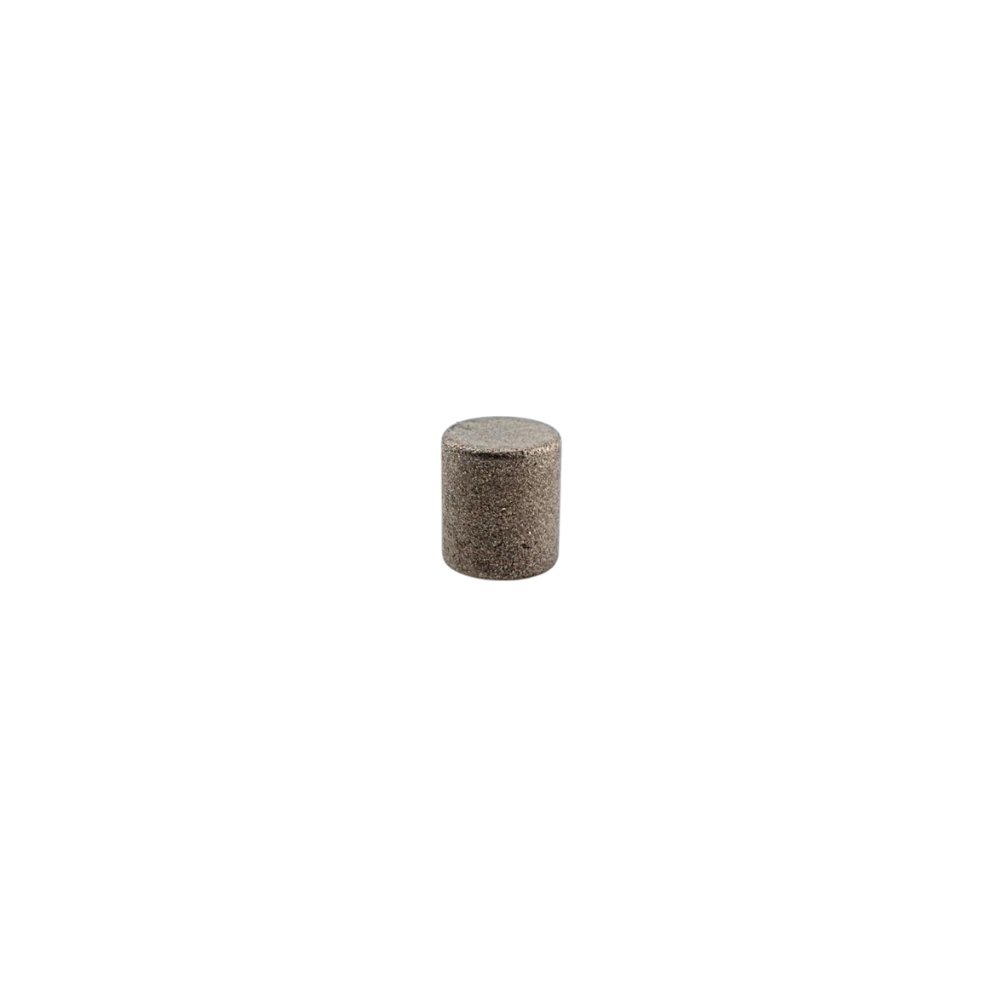

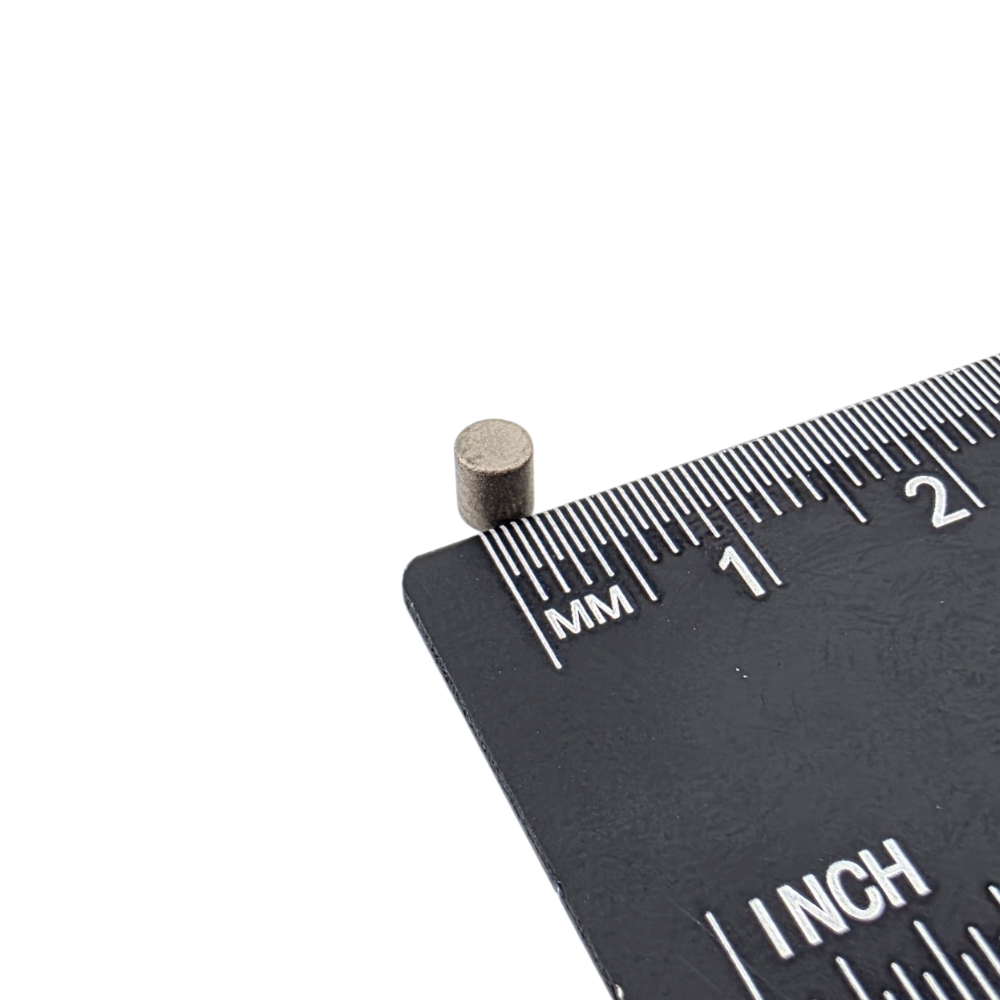

Dimensions: Ø 3.5mm (Diameter) x 4mm (Length)
The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm
Pull Strength: Approx TBC
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.
Direction of Magnetism: "Axially"
Magnetised (top to bottom) thru 4mm length. The axis through which a product is magnetised. Products may be magnetised axially, diametrically or otherwise (e.g. multipole). See more about directions of magnetism at our Help Centre.
Grade: Sm2Co17 (YXG26)
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.
Features:
- Powerful Rare Earth (Samarium Cobalt) permanent magnet.
- Uncoated
- Maximum operating temperature 350°C
Order Units: Single
Bulk discounts available on orders of 1,000pcs or more.
