Material
Grade
Max Temp (°C)
Corrosion resist.
Description

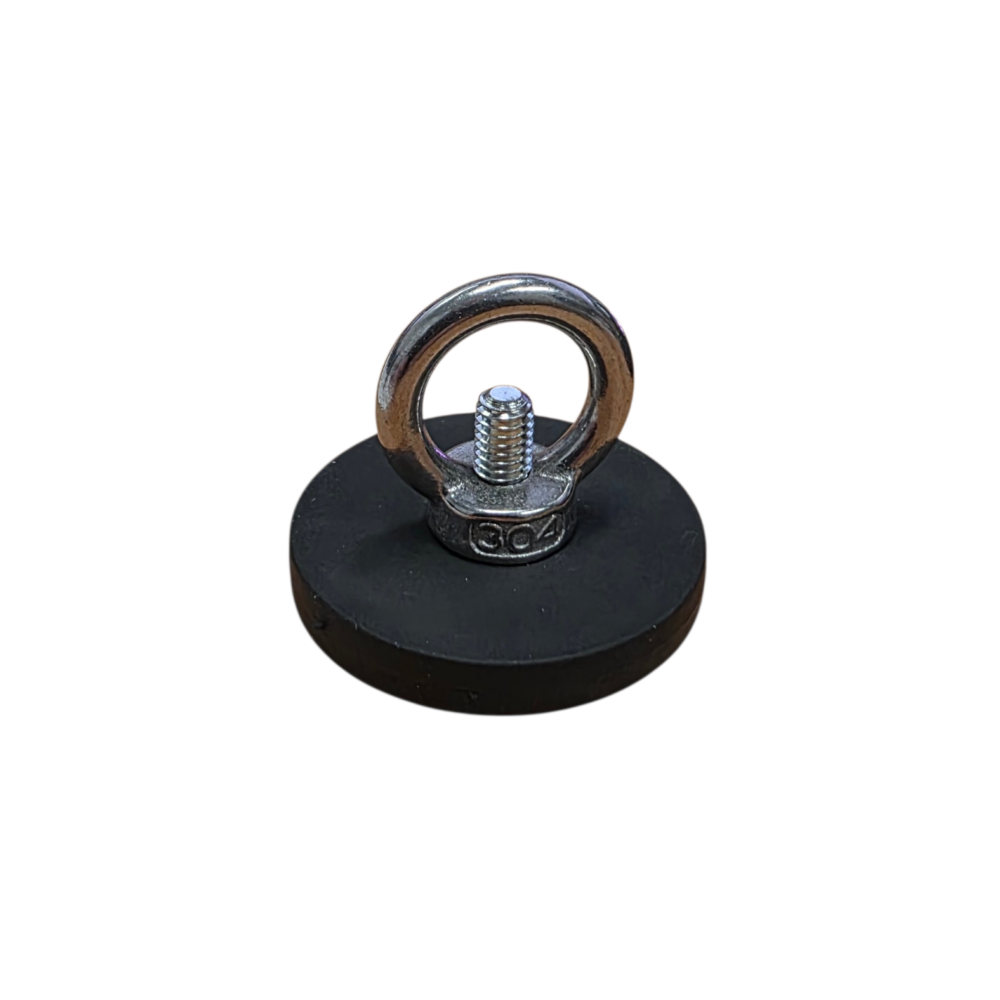

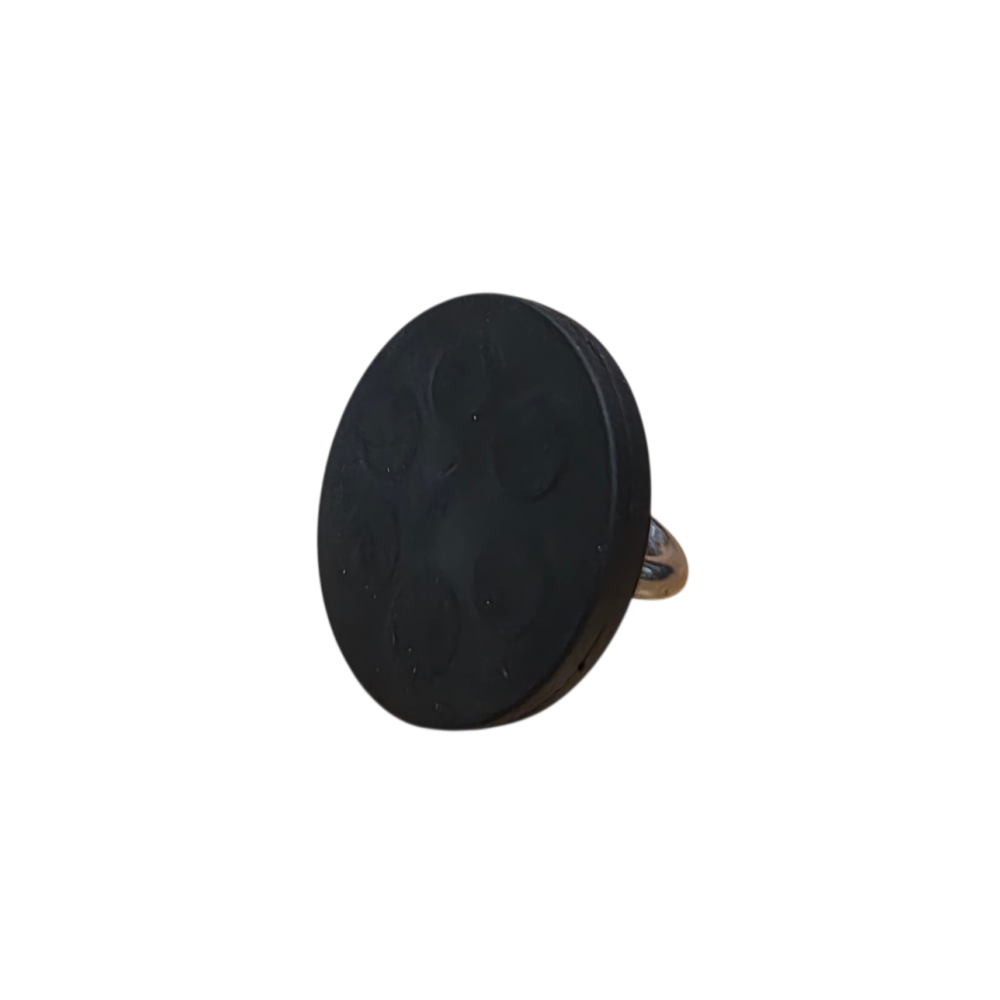

Dimensions: Ø 43mm (Diameter) x 6mm (Thickness), 15mm high M6 male thread with Stainless Steel Eyenut
Pull Strength: 8.5kg
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.
Direction of Magnetism:"Axially"
Magnetised (top to bottom) thru 6mm thickness.The axis through which a product is magnetised. Products may be magnetised axially, diametrically or otherwise (e.g. multipole). See more about directions of magnetism at our Help Centre.
Grade: N38
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.
Features:
- Magnet is encapsulated in a protective steel holding pot, and covered in a durable santoprene casing.
- Incorporates a metric threaded male external thread
- Includes Stainless Steel Eye Nut M6 (26mm OD / 8mm Usable ID)
- Powerful Rare Earth (Neodymium) permanent magnet.
- Maximum operating temperature 80°C / 100°C
Order Units:
Available in individual units.
Bulk discounts available on orders of 1,000pcs or more.
