50mm x 13.5mm x 5mm Rectangular Pot with 3mm Countersunk Hole (Rare Earth)

Dimensions:
The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm
Length: 50mm (L)
Width: 13.5mm (W)
Height: 5mm (H)
Countersunk Hole: 6mm (D1)
Through Hole : 3mm (D2)
Hole Centre Width: 40mm (L1)

Pull Strength: 25kg
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.

Direction of Magnetism: "Axially"
Magnetised (top to bottom) thru 5mm thickness. The axis through which a product is magnetised.

Grade: N35
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.

Features:

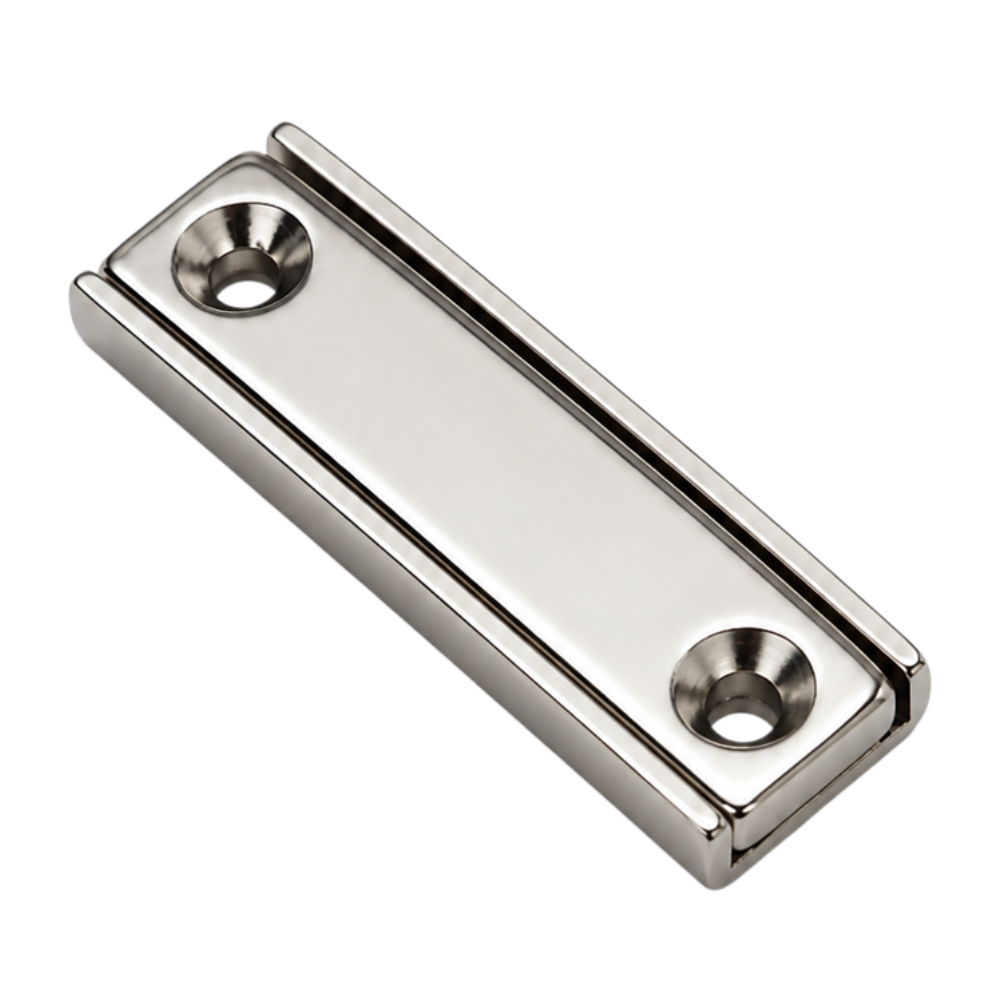

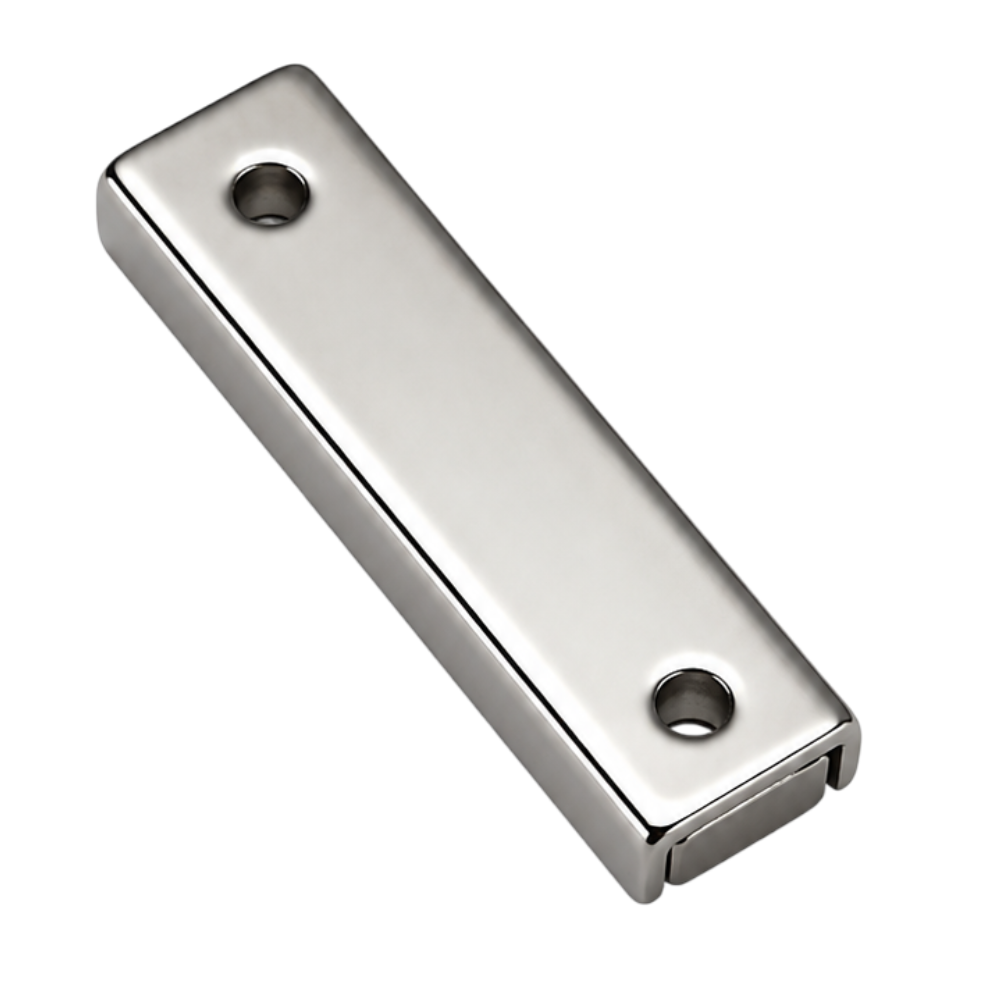

- This Rectangular (Channel) Magnet is encapsulated on all but one side with a protective steel holding pot.
- Incorporates a countersunk hole for use with flathead screws.
- Powerful Rare Earth (Neodymium) permanent magnet.
- High gloss Nickel coating, for protection against corrosion.
- Maximum operating temperature 80°C / 100°C

Order Units: Single
(Bulk discounts available on orders of 1,000pcs or more)

Available in a range of sizes from 10mm to 120mm
