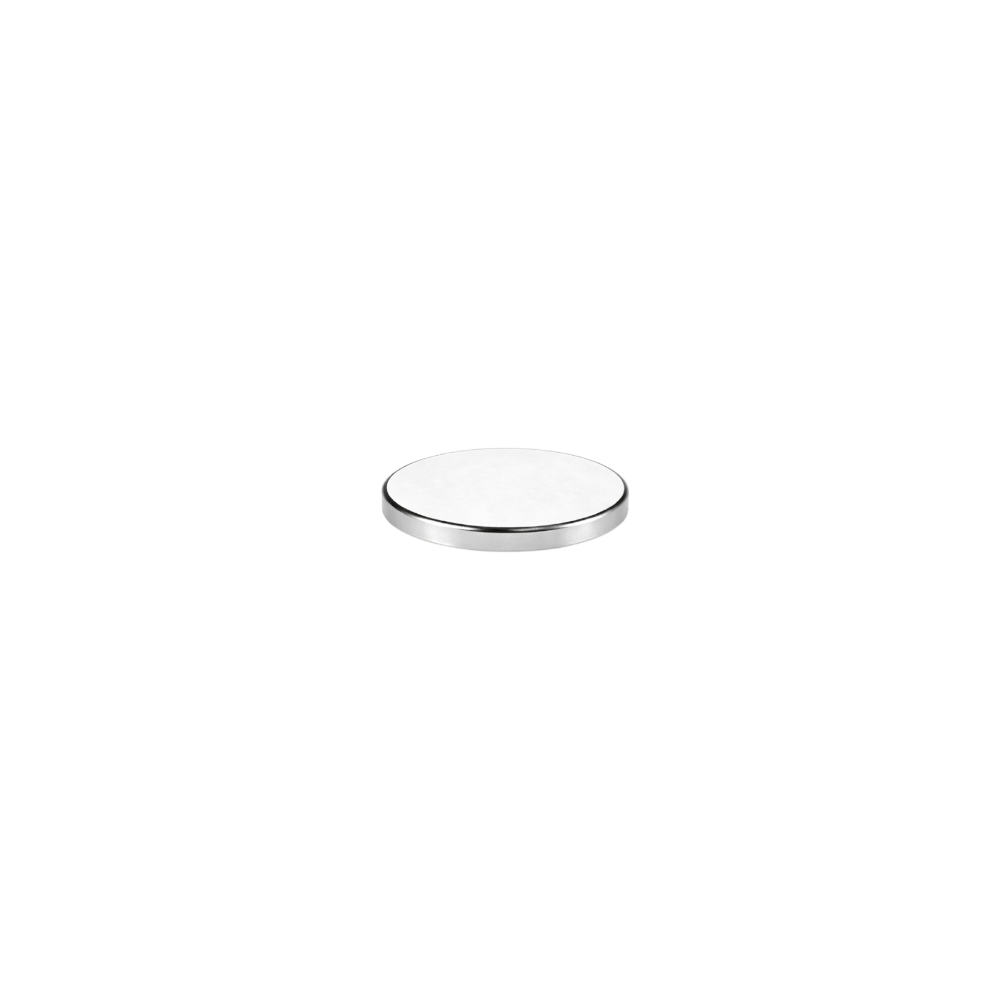

8mm x 1mm Disc - N52 (Rare Earth)

Dimensions: Ø 8mm (Diameter)  x  1mm (Thickness)
The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm

Pull Strength: 535g
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.

Direction of Magnetism:
"Axially" magnetised (top to bottom) thru 1mm thickness The axis through which a product is magnetised.

Gauss: 1795
Gauss A measurement of surface "magnetic induction" (B), equal to one ten-thousandth of a Tesla. Gauss indicates the number of lines of magnetic flux per square centimetre, under the CGS metric system.

Grade: N52
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger).

Features:
- Powerful Rare Earth (Neodymium) permanent magnet.
- High gloss Nickel coating, for protection against corrosion.
- Maximum operating temperature 80°C / 100°C

Order Units:
Sold Individually
Bulk discounts available on orders of 1,000pcs or more.

Important Handling Information:
Due to their thin profile and strong magnetic force, these magnets are more prone to breakage than thicker magnets. Sudden attraction to metal or other magnets can cause cracking or shattering. This is a physical property of neodymium magnets and breakage is not considered a manufacturing fault or warranty issue.
