Description

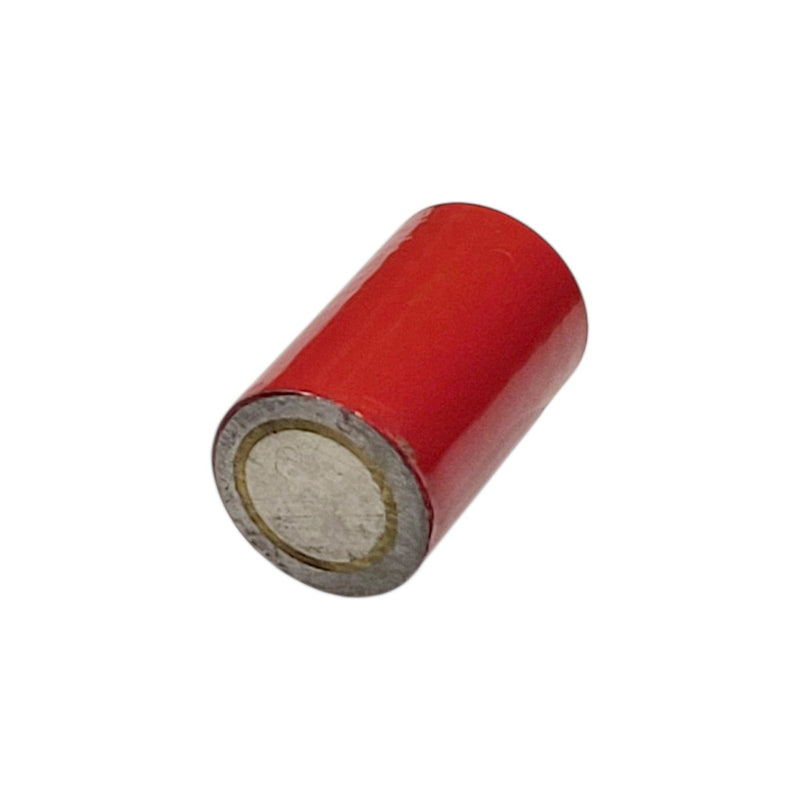

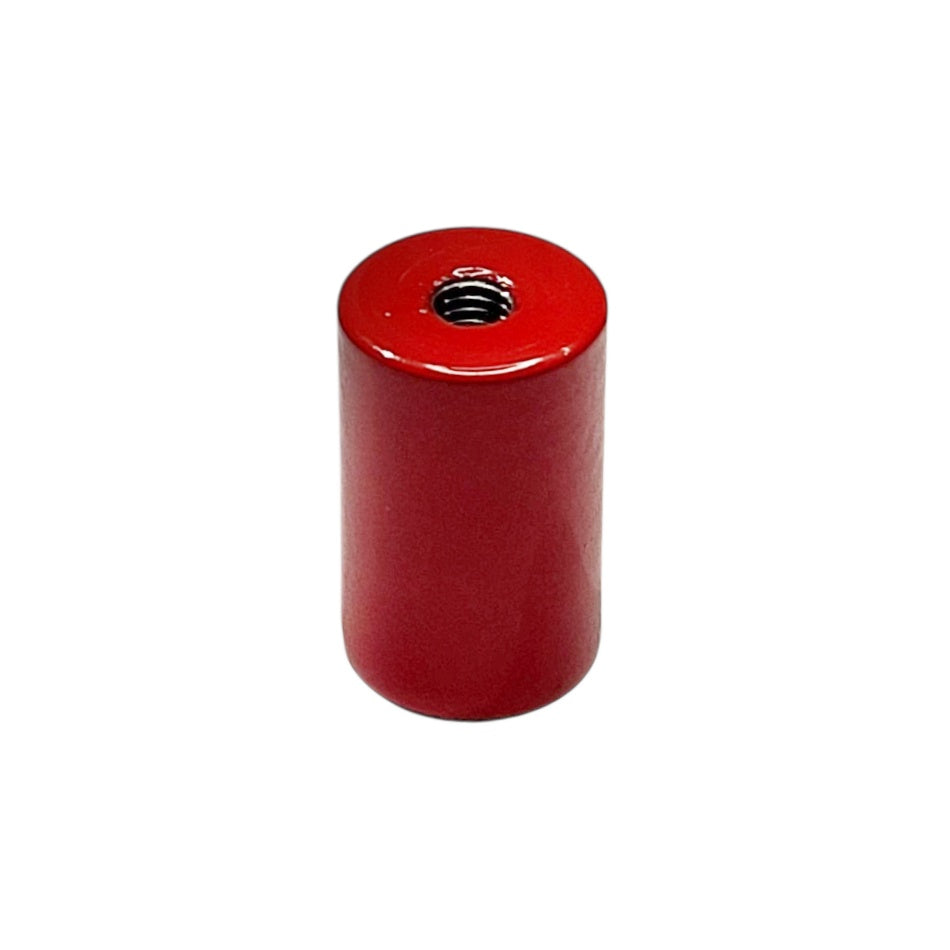

9.5mm × 15mm Deep Alnico 5 Pot Magnet with M3 Threaded Hole
This compact Alnico 5 pot magnet provides a reliable 1 kg pull strength in a durable, low-profile design. The Alnico 5 core is encased in a steel pot to concentrate the magnetic field, improving holding power relative to size. A central M3 threaded hole allows for simple mounting to jigs, fixtures, or assemblies.
Dimensions: 9.5 mm diameter × 15 mm depth
Threaded Hole: M3 (3 mm)
Pull Strength: ~1 kg
Material/Grade: Alnico 5
Temperature Stability: up to ~500 °C
Alnico magnets are well suited to applications requiring excellent heat resistance, long-term stability, and moderate holding strength in a compact footprint.
