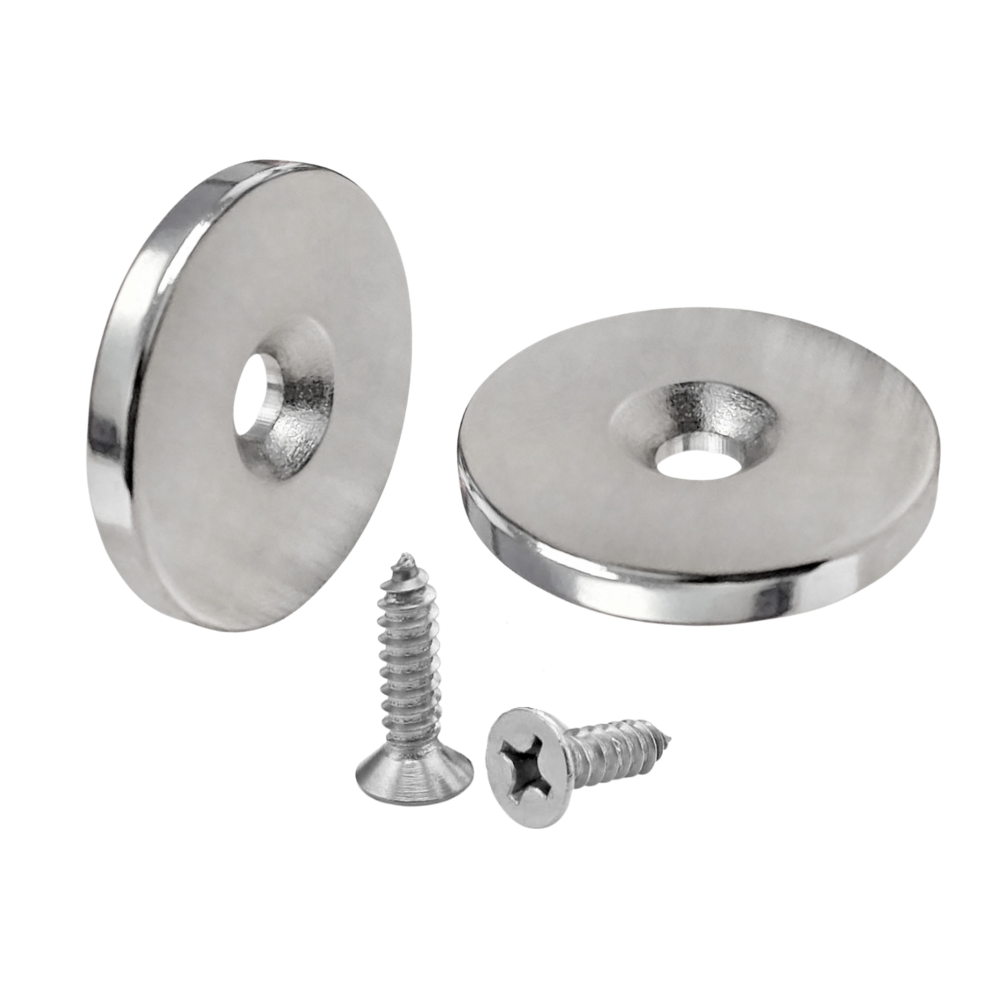

Matched Pair 38mm x 5mm Countersunk Ring Magnets with Screws

Matched pair of countersunk neodymium magnets, designed to align north-to-south for maximum holding force. The countersunk faces are precision matched to sit flush together, making them ideal for cupboard latches, door closures and concealed fixing applications. Supplied with mounting screws.

1 x Countersunk North Magnet
1 x Countersunk South Magnet
2 x 12G x 25mm Screws

Dimensions:
The dimensions of the product are measured in metric units, with an approximate "tolerance" (manufacturing margin of error) of +/- 0.05mm
Diameter: 38mm (D)
Height: 5mm (H)
Countersunk Hole: 13mm (D1)
Through Hole: 7mm (D2)



Pull Strength: 16.68kg*
The approximate force (in metric units) required to remove a magnet from industry-standard 3mm thick mild steel. These "strengths" are measured using mathematical calculations, and should be used as a general guide only.
*When used magnet-to-magnet (north to south), holding force is typically stronger than the listed pull strength to steel. As a general guide, expect around 10-30% higher holding force compared to mounting against 3mm mild steel, depending on alignment and surface gap.

Direction of Magnetism: "Axially"
Magnetised (top to bottom) thru 5mm height. The axis through which a product is magnetised.

Grade: N52
In permanent magnets, the grade refers to the materials used in the production process. Material "grades" range from low end (weaker) to high end (stronger). See more about magnet grades at our Help Centre.

Features:
- Powerful Rare Earth (Neodymium) permanent magnet.
- Matched countersunk NORTH and SOUTH faces, supplied as a latching pair
- 7mm through hole, 13mm countersink head, for flat head screws or bolts
- High gloss Nickel coating, for protection against corrosion.
- Maximum operating temperature 80°C / 100°C

Order Units: Available in individual units.
Bulk discounts available on orders of 100 or more.
